Seri DOBOT Nova | Dirancang untuk Penggunaan Komersial

Robot Kolaboratif
Seri DOBOT Nova

Seri DOBOT Nova hadir dengan pilihan beban maksimum 2 kg dan 5 kg. Cobot Nova sangat ringan dan mudah digunakan. Berbagai fitur keselamatan bawaan memastikan keserbagunaan dalam berbagai aplikasi komersial, termasuk minuman, restoran, fisioterapi, dan lainnya. Warna cangkang luar yang dapat disesuaikan memungkinkan gaya yang koheren di toko.

Download product information

Highly Portable. Requires Only 1 m² of Space.

lebih ringan dan 20% lebih kecil dibandingkan dengan rekan-rekan CR mereka. Kotak kontrol seukuran telapak tangan memungkinkan penerapan cepat tanpa perlu mengubah tata letak toko.

Mudah Digunakan. Tanpa Pengalaman Diperlukan.

Metode pemrograman terdepan di industri seperti memutar kembali trajektori yang dipandu pengguna dan antarmuka pengguna grafis tidak memerlukan pengetahuan pemrograman. Pengguna di industri ritel dan perhotelan dapat dengan mudah memasukkan cobot Nova ke dalam alur kerja standar setelah menyelesaikan kursus pelatihan. Memantau aktivitas cobot dan mengelola pembaruan perangkat lunak melalui cloud dengan mudah.

Keamanan Ditingkatkan. Perlindungan Terjamin.

Cobot Nova dilengkapi dengan sensor cerdas dengan 5 tingkat perlindungan yang dapat disesuaikan. Operasi berhenti dalam 0,01 detik setelah deteksi tabrakan untuk menjaga keselamatan orang. Fitur keselamatan tambahan seperti sensor gerakan manusia dan pembekuan postur saat pemadaman daya menawarkan kolaborasi manusia-robot yang sangat diinginkan di sektor komersial.

Sesuaikan Nova untuk Bekerja Tanpa Hambatan dengan Anda.

Seri Nova menawarkan opsi kustomisasi eksterior. Campur dan sesuaikan kombinasi warna yang sesuai dengan merek Anda.

Hubungi kami

Seri Nova
Model	Nova 2	Nova 5
Berat	11 kg	14 kg
Beban Maksimum	2 kg	5 kg
Jangkauan Kerja	625 mm	850 mm
Kecepatan Maksimum TCP	1.6 m/s	2 m/s

Pertanyaan? Kami siap membantu!

Para ahli kami siap membantu Anda merencanakan jalan menuju kesuksesan otomatisasi.
Mereka dapat memberikan jawaban untuk semua pertanyaan terkait Dobot, termasuk:

√ Informasi tentang portofolio produk dan harga kami

√ Solusi yang disesuaikan dengan kebutuhan bisnis Anda

√ Kebijakan kemitraan distributor dan lainnya...

Cukup isi formulir di sebelah kanan atau kirim email ke kami di sales@dobot-robots.com.

Nova Series
Model		Nova 2	Nova 5
Weight		11 kg	14 kg
Maximum Payload		2 kg	5 kg
Working Radius		625 mm	850 mm
Maximum Speed of TCP		1.6 m/s	2 m/s
Range of Motion	J1	± 360°
	J2	± 180°
	J3	± 156°	± 160°
	J4	± 360°
	J5	± 360°
	J6	± 360°
Maximum Joint Speed	J1	135 °/s	100 °/s
	J2	135 °/s	100 °/s
	J3	135 °/s	100 °/s
	J4	135 °/s	100 °/s
	J5	135 °/s	100 °/s
	J6	135 °/s	100 °/s
End IO	DI	2 inputs
	DO	2 output
	RS485	Supported
Repeatability		±0.05 mm
IP Rating		IP54
Noise		65 dB(A)	70 dB(A)
Environment		0° to 50° C
Power Consumption	Typical	100W	230W
Power Consumption	Maximum	250W	770W
Installation Orientation		Any angle
Cable Length from Robot to Controller		3 m
Materials		ABS plastic

Controller
Dimensions		200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2 in)
Weight		1.3 kg
Input Power		30~60V DC
IO Power		24V, Max 2A, Max 0.5A for each channel
IO Interface	DI	8 inputs（NPN or PNP）
	DO	8 inputs（NPN or PNP）
	AI	2 inputs, voltage mode, 0~10V
	AO	2 outputs, voltage mode, 0~10V
Remote Power On/Off		Supported
Communication Interface	Network Interface	2, for TCP/IP and Modbus TCP communication
	USB	2, for connecting USB wireless module
	485 Interface	1, for RS485 and Modbus RTU communication
Environment	Temperature	0° to 50° C
	Humidity	≤95%，non-condensation
IP Rating		IP20
Cooling Mode		Passive heat loss
Teaching Mode		PC、APP（Android、iOS）

User Manual

Dobot CRStudio User Guide (CR&Nova) V4.13.0_V2.14.0 · Apr 1, 2024

For the industrial robots (CR & Nova series), the user manual of App V4.13.0 (Android)/V2.14.0 (iOS).

DobotStudio Pro V2.8 ユーザーマニュアル (CR&Nova) · Feb 6, 2024

DobotStudio Pro V2.8 Benutzerhandbuch(CR&Nova) · Feb 6, 2024

DobotStudio Pro 2.8 User Guide (CR&Nova) · Apr 1, 2024

For the industrial robots (CR & Nova series), the user manual of PC software V2.8

Dobot Nova Series User Guide · Dec 25, 2023

This document describes the functions, technical specifications, installation guide and maintenance of Dobot Nova Series robot, making it easy for users to fully understand and use it.

Dobot Nova Series User Guide · Dec 11, 2023

This document describes the functions, technical specifications, installation guide and maintenance of Dobot Nova Series robot, making it easy for users to fully understand and use it.

DobotStudio Pro V2.7.1 Benutzerhandbuch(CR&Nova) · Oct 24, 2023

DobotStudio Pro User Guide (CR&Nova) V2.7.1 · Oct 24, 2023

For the industrial robots (CR & Nova series), the user manual of PC software V2.7.1

Dobot Nova Series User Guide · Jul 20, 2023

This document describes the functions, technical specifications, installation guide and maintenance of Dobot Nova Series robot, making it easy for users to fully understand and use it.

DobotStudio Pro User Guide (CR&Nova) V4.1.0.0 · Jul 10, 2023

For the industrial robots (CR & Nova series), the user manual of PC software V4.1.0.0.

Dobot CRStudio User Guide (CR&Nova) V4.12.0_V2.13.0 · Jul 6, 2023

For the industrial robots (CR & Nova series), the user manual of App V4.12.0 (Android)/V2.13.0 (iOS).

DobotStudio Pro User Guide (CR&Nova) V2.7.1 · May 31, 2023

For the industrial robots (CR & Nova series), the user manual of PC software V2.7.1

Dobot Nova Series User Guide · Apr 11, 2023

This Document describes the functions, technical specifications, installation guide and maintenance of DOBOT Nova Series robot, making it easy for users to fully understand and use it.

Dobot CRStudio APP User Guide (CR&Nova) · Apr 21, 2023

For the industrial robots (CR & Nova series), the user manual of Android & iOS APP.

DobotStudio Pro User Guide (CR&Nova) · Apr 21, 2023

For the industrial robots (CR & Nova series), the user manual of PC software.

Dobot CRStudio APP User Guide (CR&Nova) · Dec 9, 2022

For the industrial robots (CR & Nova series), the user manual of Android & iOS APP.

Dobot Nova Series User Guide · Dec 12, 2022

This Document describes the functions, technical specifications, installation guide and maintenance of DOBOT Nova Series robot, making it easy for users to fully understand and use it.
Control Software

Dobot Robot Maintenance Tool V2.1.0-stable · Mar 3, 2025

The software helps users easily upgrade the firmware of the manipulator, backup and restore the controller file and other functions.
Applicable models:
1. CR+ control cabinet CC162
2. CRV2+ control cabinet CC162
3. CRA+ control cabinet CC262/CC263
4. Nova+CCBOX
5. E6
6. CRV+CC262V/CC263V
Version function:
1. Support one-click upgrade and rollback function, separate upgrade and rollback function of corresponding version for corresponding models
2. support export log, restore IP, repair controller MAC address, detect file loss and other functions
3. Support file backup and recovery function
4. Support both Chinese and English environments

Dobot Robot Maintenance Tool V2.0.0-stable · Dec 27, 2024

The software helps users easily upgrade the firmware of the manipulator, backup and restore the controller file and other functions.
Applicable models:
1. CR+ control cabinet CC162
2. CRV2+ control cabinet CC162
3. CRA+ control cabinet CC262/CC263
4. Nova+CCBOX
5. E6
6. CRV+CC262V/CC263V
Version function:
1. Support one-click upgrade and rollback function, separate upgrade and rollback function of corresponding version for corresponding models
2. support export log, restore IP, repair controller MAC address, detect file loss and other functions
3. Support file backup and recovery function
4. Support both Chinese and English environments

DobotStudio Pro 2.8 (V2.8.3.0) for Win64 · Dec 17, 2024

Version Description:
1. Improved the "Auto-identification" function for MG400.
2. Enhanced safety for the "Auto-identification" process to avoid potential errors. The system now checks the identification results and provides prompts when necessary.
3. A notification pop-up will now appear when the DobotLink port is occupied.
4. Resolved various known issues to improve system stability and performance.

DobotStudio Pro 2.8 (V2.8.1.0) for Win64 · Aug 7, 2024

Version Description:
1. Robot SN code display
2. End button (enter drag + save point) function
3. Four-axis remote configuration function synchronized CR
4. Fix some known BUG;

DobotStudio Pro 2.8 (V2.8.1.0) for Win32 · Aug 7, 2024

Version Description:
1. Robot SN code display
2. End button (enter drag + save point) function
3. Four-axis remote configuration function synchronized CR
4. Fix some known BUG;

Dobot Robot Maintenance Tool V1.3.6-stable · Jul 26, 2024

The software helps users easily upgrade the firmware of the manipulator, backup and restore the controller file and other functions.
Applicable models:
1. CR+ control cabinet CC162
2. CRV2+ control cabinet CC162
3. CRA+ control cabinet CC262/CC263
4. Nova+CCBOX
5. E6
Version function:
1. Support one-click upgrade and rollback function, separate upgrade and rollback function of corresponding version for corresponding models
2. support export log, restore IP, repair controller MAC address, detect file loss and other functions
3. Support file backup and recovery function
4. Support Chinese, English, and Japanese environments

Dobot Robot Maintenance Tool V1.3.5-stable · Apr 8, 2024

The software helps users easily upgrade the firmware of the manipulator, backup and restore the controller file and other functions.
Applicable models:
1. CR+ control cabinet CC162
2. CRV2+ control cabinet CC162
3. CRA+ control cabinet CC262/CC263
4. Nova+CCBOX
5. E6
Version function:
1. Support one-click upgrade and rollback function, separate upgrade and rollback function of corresponding version for corresponding models
2. Support export log, restore IP, repair controller MAC address, detect file loss and other functions
3. Support file backup and recovery function
4. Support both Chinese and English environments

Dobot Robot Maintenance Tool V1.3.4-stable · Mar 6, 2024

The software helps users easily upgrade the firmware of the manipulator, backup and restore the controller file and other functions Applicable products.
Applicable models:
1. CR+ control cabinet CC162
2. CRV2+ control cabinet CC162
3. CRA+ control cabinet CC262/CC263
4. Nova+CCBOX
5. E6
Version function:
1. Support one-click upgrade and rollback function, separate upgrade and rollback function of corresponding version for corresponding models
2. support export log, restore IP, repair controller MAC address, detect file loss and other functions
3. Support file backup and recovery function
4. Support both Chinese and English environments

Android APP CRStudio v4.13.0 · Feb 25, 2024

Version Description:
1. Robot SN code display
2. End button (enter drag + save point) function
3. Four-axis remote configuration function synchronized CR
4. Fix some known BUG;

DobotStudio Pro 2.8 (V2.8.0.0) for Win64 · Feb 2, 2024

Version Description:
1. Robot SN code display
2. End button (enter drag + save point) function
3. Four-axis remote configuration function synchronized CR
4. Fix some known BUG;

DobotStudio Pro 2.8 (V2.8.0.0) for Win32 · Feb 2, 2024

Version Description:
1. Robot SN code display
2. End button (enter drag + save point) function
3. Four-axis remote configuration function synchronized CR
4. Fix some known BUG;
3D Model / Dimension Drawing

DOBOT CCBOX Model · Aug 10, 2023

DOBOT Nova 2 Model · Aug 10, 2023

DOBOT Nova 5 Model · Aug 10, 2023

DOBOT Nova 5 Model · Nov 24, 2022

DOBOT Nova 2 Model · Nov 24, 2022
Secondary Development

SDK (CR / MG400 / M1 Pro) · Apr 18, 2022

The SDK is suitable for the secondary development of Dobot collaborative robot CR/MG400/M1Pro series. Based on TCP / IP communication protocol, and provides the support of Java / C++ / C# / Python / ROS / MATLAB / LabVIEW / Android Demo.

Solutions de robots collaboratifs DOBOT pour l’automatisation

Seri Nova

Robot Kolaboratif Seri DOBOT Nova

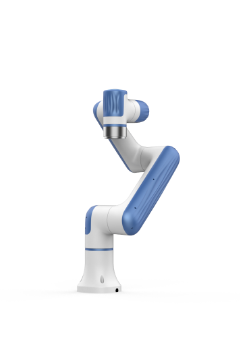

Nova 2

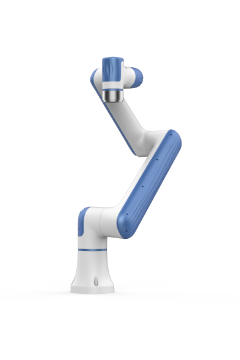

Nova 5

Highly Portable. Requires Only 1 m² of Space.

Mudah Digunakan. Tanpa Pengalaman Diperlukan.

Keamanan Ditingkatkan. Perlindungan Terjamin.

Sesuaikan Nova untuk Bekerja Tanpa Hambatan dengan Anda.

Seri Nova

Nova Series

User Manual

Dobot CRStudio User Guide (CR&Nova) V4.13.0_V2.14.0 · Apr 1, 2024

DobotStudio Pro V2.8 ユーザーマニュアル (CR&Nova) · Feb 6, 2024

DobotStudio Pro V2.8 Benutzerhandbuch(CR&Nova) · Feb 6, 2024

DobotStudio Pro 2.8 User Guide (CR&Nova) · Apr 1, 2024

Dobot Nova Series User Guide · Dec 25, 2023

Dobot Nova Series User Guide · Dec 11, 2023

DobotStudio Pro V2.7.1 Benutzerhandbuch(CR&Nova) · Oct 24, 2023

DobotStudio Pro User Guide (CR&Nova) V2.7.1 · Oct 24, 2023

Dobot Nova Series User Guide · Jul 20, 2023

DobotStudio Pro User Guide (CR&Nova) V4.1.0.0 · Jul 10, 2023

Dobot CRStudio User Guide (CR&Nova) V4.12.0_V2.13.0 · Jul 6, 2023

DobotStudio Pro User Guide (CR&Nova) V2.7.1 · May 31, 2023

Dobot Nova Series User Guide · Apr 11, 2023

Dobot CRStudio APP User Guide (CR&Nova) · Apr 21, 2023

DobotStudio Pro User Guide (CR&Nova) · Apr 21, 2023

Dobot CRStudio APP User Guide (CR&Nova) · Dec 9, 2022

Dobot Nova Series User Guide · Dec 12, 2022

Control Software

Dobot Robot Maintenance Tool V2.1.0-stable · Mar 3, 2025

Dobot Robot Maintenance Tool V2.0.0-stable · Dec 27, 2024

DobotStudio Pro 2.8 (V2.8.3.0) for Win64 · Dec 17, 2024

DobotStudio Pro 2.8 (V2.8.1.0) for Win64 · Aug 7, 2024

DobotStudio Pro 2.8 (V2.8.1.0) for Win32 · Aug 7, 2024

Dobot Robot Maintenance Tool V1.3.6-stable · Jul 26, 2024

Dobot Robot Maintenance Tool V1.3.5-stable · Apr 8, 2024

Dobot Robot Maintenance Tool V1.3.4-stable · Mar 6, 2024

Android APP CRStudio v4.13.0 · Feb 25, 2024

DobotStudio Pro 2.8 (V2.8.0.0) for Win64 · Feb 2, 2024

DobotStudio Pro 2.8 (V2.8.0.0) for Win32 · Feb 2, 2024

3D Model / Dimension Drawing

DOBOT CCBOX Model · Aug 10, 2023

DOBOT Nova 2 Model · Aug 10, 2023

DOBOT Nova 5 Model · Aug 10, 2023

DOBOT Nova 5 Model · Nov 24, 2022

DOBOT Nova 2 Model · Nov 24, 2022

Secondary Development

SDK (CR / MG400 / M1 Pro) · Apr 18, 2022

* Data di atas adalah hasil tes yang diperoleh oleh Laboratorium Dobot dalam kondisi eksperimen yang terkontrol, yang mungkin memiliki perbedaan kecil dari yang ada di skenario aplikasi aktual.

Establish Contact with Dobot Experts

Contact Information

Choose the Product that Interests You

Virtual Controller Application

Contact Information

Application Product

File sent

The related product information has been sent, please kindly check your email.

Join Dobot+ Ecosystem to Forge Deeper Partnerships

Contact Information

Message

Robot Kolaboratif
Seri DOBOT Nova
