About the conveyor belt kit

The Conveyor Belt Kit is a highly integrated modular component developed by Dobot for practical training. It supports various features includingautomatic material feeding, transportation, inspection and more.
Its high compatibility allows combined usage with a number of robots including the DOBOT MG400, CR series and Magician E6. By combining the use with Collaborative Robot Universal Training Platform and other components, users can benefit from enhanced training results as automation scenes can be easily simulated.

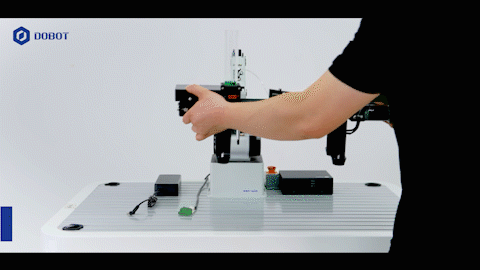

Lightweight and Highly-integrated

Lightweight and Highly-integrated

With a lightweight and highly-integrated design, it can be set up on tables, floors and training systems by just tightening screws for quick deployment.

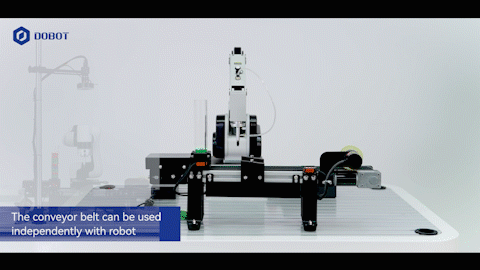

Various Combinations for Better Simulations

Various Combinations for Better Simulations

Works with the Collaborative Robot Universal Training Platform, CR series and Magician E6 and PLC modular components to simulate various scenarios, satisfying training needs.

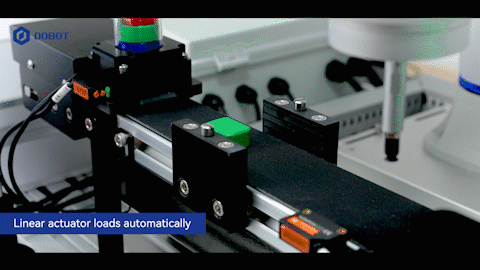

Compact and Multifunctional

Compact and Multifunctional

Supports various functions such as automatic material feeding, checks for item and conveyor belt travel distance with real-time feedback on the accurate item position on the conveyor belt. It can collaborate with robots for precise picking. It also has a wide range of ports to support plug-and-play for easy operation.

Hubungi kami
Pertanyaan? Kami siap membantu!
Para ahli kami siap membantu Anda merencanakan jalan menuju kesuksesan otomatisasi.
Mereka dapat memberikan jawaban untuk semua pertanyaan terkait Dobot, termasuk:
√ Informasi tentang portofolio produk dan harga kami
√ Solusi yang disesuaikan dengan kebutuhan bisnis Anda
√ Kebijakan kemitraan distributor dan lainnya...
Cukup isi formulir di sebelah kanan atau kirim email ke kami di sales@dobot-robots.com.
Product Name Conveyor Belt Kit
Main Body Dimensions 583 ±8mm x 115mm x 180 ±5mm
Belt Dimensions 583 ±8mm x 55mm x 140 ±5mm
Power Input DC 24V
Current About 1A
Speed About 40mm/s
Automatic Loading Operates using linear actuator for 50 mm
Material Inspection Photoelectric sensor, inspection on the presence of material in 0 to 100 mm
Incremental Encoder Resolution 1000P/R
Output Signal ABZA/B/Z/ signal phasing
Diameter 40mm
Voltage DC 5V
Product certification CE, RoHS

* Data di atas adalah hasil tes yang diperoleh oleh Laboratorium Dobot dalam kondisi eksperimen yang terkontrol, yang mungkin memiliki perbedaan kecil dari yang ada di skenario aplikasi aktual.
