DOBOT Conveyor Belt Kit: Stepping into a Production Line Simulation Universe

The Conveyor Kit for DOBOT Magician makes it possible to obtain a complete simulated production line. The powerful and programmable DOBOT Magician, combined with the adjustable speed, distance, and color sensor conveyor belt, is a perfect tool for creating a highly effective simulated production line or even applying it to existing factory application scenarios.

Conveyor Belt as a Core Component

A mini conveyor belt is a core component for building an automation process with your robotic arm. It is adaptable to multiple educational needs, enabling you to train your skills in a production assembly line.

Photoelectric Switch Facilitates Object Detection

Detect whether there are objects in front of the photoelectric switch as it helps improve the quality and the speed of the object detection.

Color Sensor Detection on the Surface

An easy-to-use color sensor for you to categorize red, blue, and green objects. Do not need to give the robotic arm a hint of the color. With the help of color sensor technology, DOBOT Conveyor Belt Kit will scan and identify them fast.

Interactive Foam Blocks

These colorful foam blocks are easy to grab, move, and pile. It is the most suitable material for getting a grip on the automation process.

Hubungi kami

Pertanyaan? Kami siap membantu!

Para ahli kami siap membantu Anda merencanakan jalan menuju kesuksesan otomatisasi.
Mereka dapat memberikan jawaban untuk semua pertanyaan terkait Dobot, termasuk:

√ Informasi tentang portofolio produk dan harga kami

√ Solusi yang disesuaikan dengan kebutuhan bisnis Anda

√ Kebijakan kemitraan distributor dan lainnya...

Cukup isi formulir di sebelah kanan atau kirim email ke kami di sales@dobot-robots.com.

Conveyor Belt
Payload	500 g
Effective delivering distance	600 mm
Maximum speed	120 mm/s
Maximum acceleration	1100 mm/s²
Net Weight	4.2 kg
Weight (including packing)	5.34 kg
Dimension	700 mm × 215 mm × 60 mm

Distance measuring sensor unit
Measurable range	20 ~ 150 mm
Signal	Analog Output
Input	4.5 - 5.5 V

Color recognizing sensor unit
Input	3 ~ 5 V

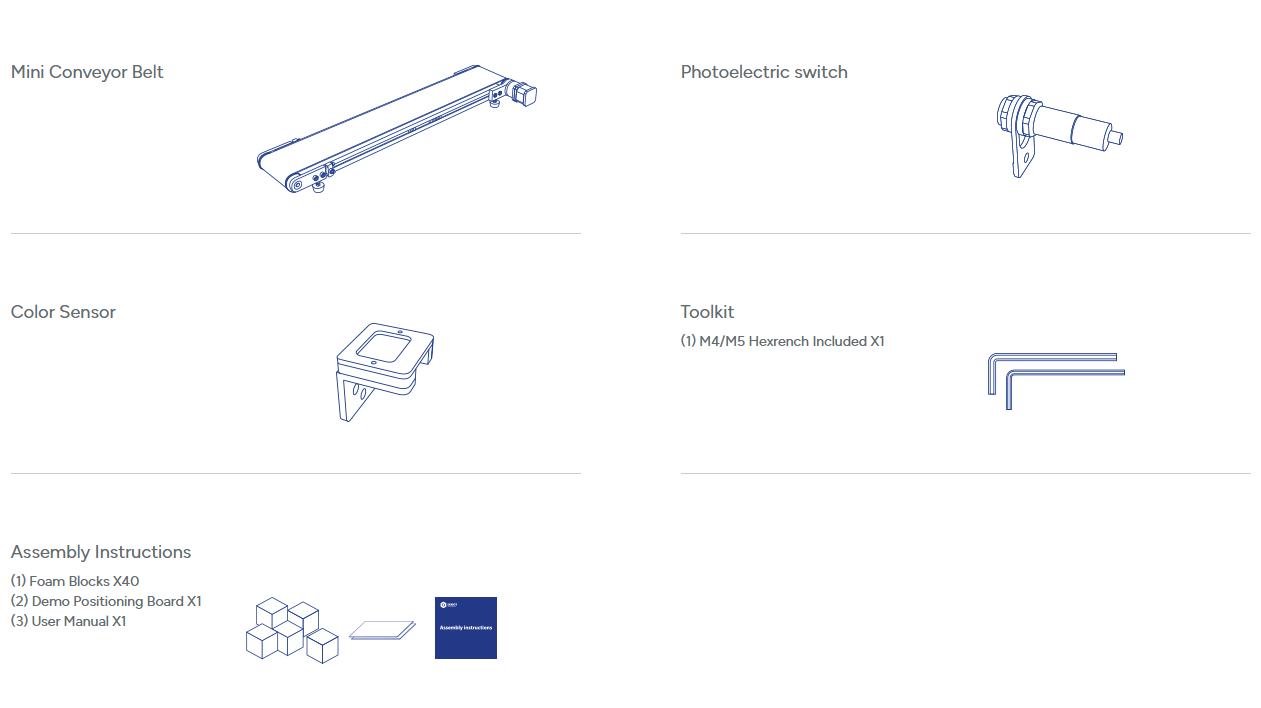

Shipping List

The package include: Mini conveyor belt, Photoelectric switch, Color sensor, Toolkit and Attachment. We don't cover the customs tax

What to do if the Magician encounters obstacles and misses some steps when it is running and results in error?

Reset the robot by pressing the Home button and continue the operation...

Pelajari lebih lanjut

What to do when 2 programs are running, the block is at the photoelectric sensor but the robot does not execute picking action?

Open Blockly and run the test program below to check whether...

Pelajari lebih lanjut

What to do if the robotic arm stops above the color sensor and places blocks on it during a sorting process?

Take a close look at the color of the indicator light...

Pelajari lebih lanjut

What to do if the color sensor doesn't work or it can only identify one color?

Check the versions of the firmware and DobotStudio to see...

Pelajari lebih lanjut
